Purposes of Programmable Heating/Cooling Shaking Dry Bath: The product is used for quick mixture, heating, cooling, oscillation, culture, incubation catalysis and reaction of biological samples; Applicable scenario: It can find applications in lab scenes related to molecular biology, immunology, virology, microbiology and pathology in scientific research institutions, colleges & universities, medical & health institutions and biotechnology enterprises.

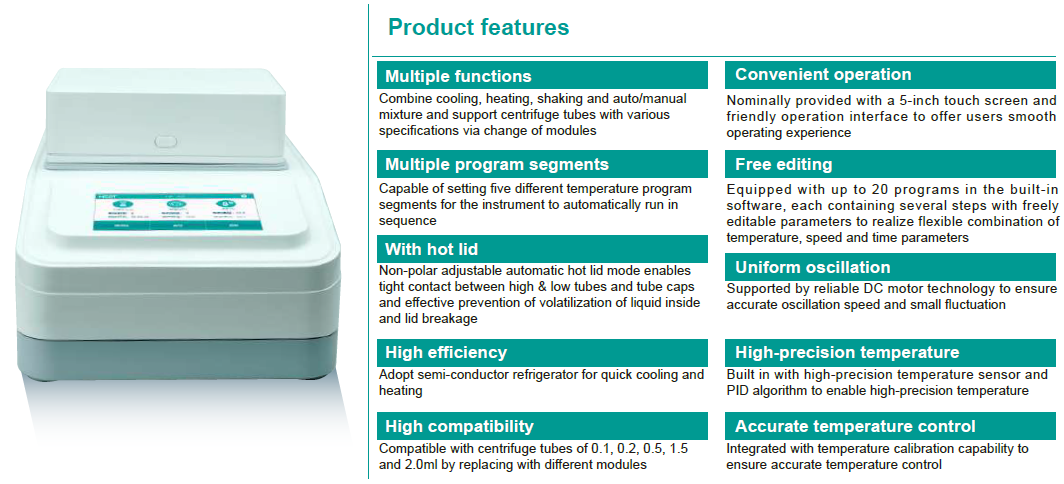

Product features
Multiple functions
Combine cooling, heating, shaking and auto/manual mixture and support centrifuge tubes with various specificalions via change of modules
Multiple program segments
Capable of setting five different temperature program segments for the instrument to automaticalhy run in sequence
With hot lid
Non-polar adjustable automatic hot lid mode enables tight contact between high & low tubes and tube caps and effective prevention of volatilization of liquid inside and lid breakage
High efficiency
Adopt semi-conductor refrigerator for quick cooling and heating
High compatibility
Compatible with centrifuge tubes of 0.1, 0.2, 0.5 1.5 and 2.0ml by replacing with different modules
Convenient operation
Nominally provided with a 5-inch touch screen and friendly operation interface to offer users smooth operating experence
Free editing
Equipped with up to 20 programs in the built-in software, each containing several steps with freely editable paramelers to realize flexible combination of temperature, speed and time parameters
Uniform oscillation
Supported by reliable DC motor technology to ensure accurate oscillation speed and small fluctuation
High-precision temperature
Built in with high-precision temperature sensor and PID algonthm to enable high-precision temperature
Accurate temperature control
Integrated with temperature calibration capability to ensure accurate temperature control

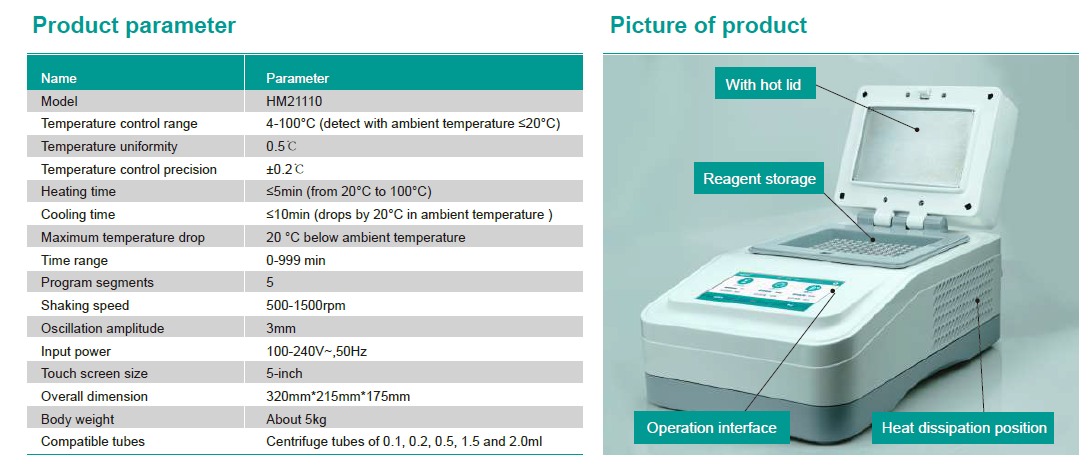

Product parameter
| Name | Parameler |
Model | HM21110 |
| Temperature control range | 4-100°C (detect with ambient temperature≤20°C) |
| Temperature uniformity | 0.5C |
| Temperature control precision | ±0.2C |
| Heating time | ≤5min (from 20°C to 100°C) |
| Cooling time | ≤10min (drops by 20°C in ambient temperature ) |
| Maximum temperature drop | 20°C below ambient temperature |
| Time range | 0-999 min |
| Program segments | 5 |
| Shaking speed | 500-1500rpm |
| Oscillation amplitude | 3mm |
| Input power | 100-240V~,50H2 |
| Touch screen size | 5-inch |
| Overall dimension | 320mm*215mm*175mm |
| Body weight | About 5kg |
| Compatible tubes | Centrifuge tubes of 0.1, 0.2, 0.5, 1.5 and 2.0ml |
