Heating/Cooling Shaking Dry Baths
Heating/Cooling Shaking Dry Baths

Purposes of Programmable Heating/Cooling Shaking Dry Bath: The product is used for quick mixture, heating, cooling, oscillation, culture, incubation catalysis and reaction of biological samples; Applicable scenario: It can find applications in lab scenes related to molecular biology, immunology, virology, microbiology and pathology in scientific research institutions, colleges & universities, medical & health institutions and biotechnology enterprises.

Get Quotation

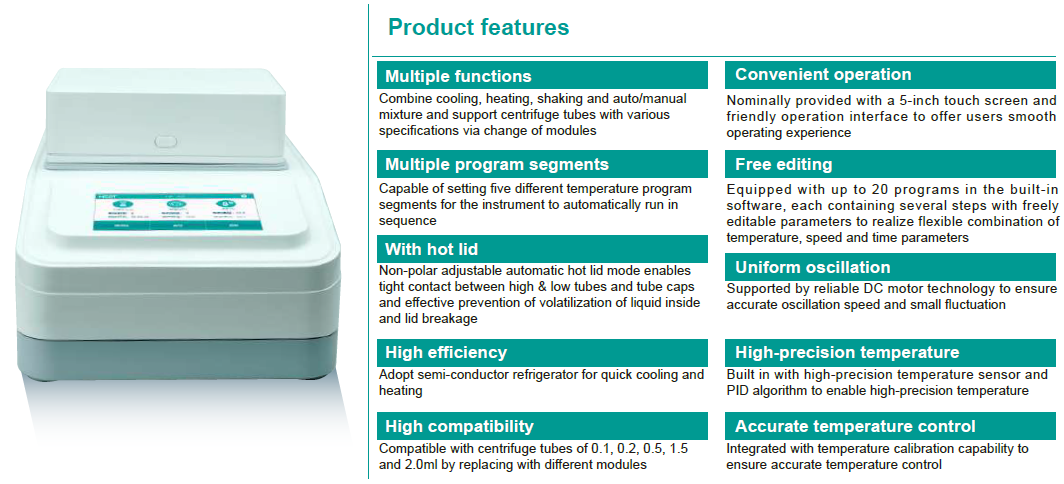

Product features

Multiple functions

Combine cooling, heating, shaking and auto/manual mixture and support centrifuge tubes with various specificalions via change of modules

Multiple program segments

Capable of setting five different temperature program segments for the instrument to automaticalhy run in sequence

With hot lid

Non-polar adjustable automatic hot lid mode enables tight contact between high & low tubes and tube caps and effective prevention of volatilization of liquid inside and lid breakage

High efficiency

Adopt semi-conductor refrigerator for quick cooling and heating

High compatibility

Compatible with centrifuge tubes of 0.1, 0.2, 0.5 1.5 and 2.0ml by replacing with different modules

Convenient operation

Nominally provided with a 5-inch touch screen and friendly operation interface to offer users smooth operating experence

Free editing

Equipped with up to 20 programs in the built-in software, each containing several steps with freely editable paramelers to realize flexible combination of temperature, speed and time parameters

Uniform oscillation

Supported by reliable DC motor technology to ensure accurate oscillation speed and small fluctuation

High-precision temperature

Built in with high-precision temperature sensor and PID algonthm to enable high-precision temperature

Accurate temperature control

Integrated with temperature calibration capability to ensure accurate temperature control

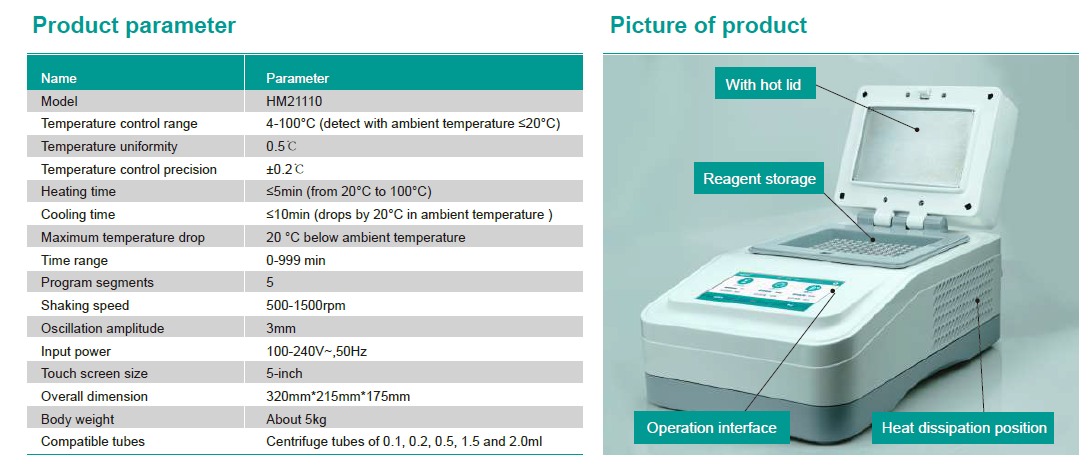

Product parameter



Temperature control range
4-100°C (detect with ambient temperature≤20°C)
Temperature uniformity
Temperature control precision
Heating time
≤5min (from 20°C to 100°C)
Cooling time
≤10min (drops by 20°C in ambient temperature )
Maximum temperature drop
20°C below ambient temperature
Time range
0-999 min
Program segments
Shaking speed
Oscillation amplitude
Input power
Touch screen size
Overall dimension
Body weight
About 5kg
Compatible tubes
Centrifuge tubes of 0.1, 0.2, 0.5, 1.5 and 2.0ml
